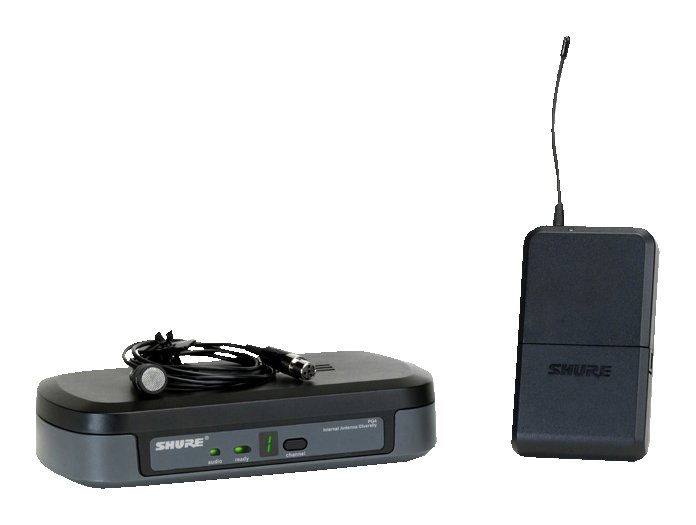

Manufacturer's Description for Shure PG14/PG185 Wireless Lavalier System

A comprehensive first step into professional wireless, the Shure PG14/PG185 wireless lavalier system is engineered to the same uncompromising quality standards as PGX, SLX, ULX and UHF-R wireless systems. Marrying superior sound quality and stage-proven endurance with advanced features like Internal Antenna Diversity and frequency selectability, the Shure PG14/PG185 fulfills the promise of independent, confident performance in freedom from the wire.

Features:

- Reliable wireless performance
- Up to 8 compatible systems (across multiple bands)
- Shure's patented Predictive Diversity ensures continuous reception
- Confident, portable setup
- Internal Antenna
- First in the industry
- Internal 1/4 wave antennas minimize poor positioning and breakage
- Durable construction
- Superior sound quality
- Variable companding ratio for clear sound
- 80 years of microphone expertise

Condenser Lavalier Microphone

- Clothing clip for secure placement
- Acoustic windscreen minimizes wind noise in outdoor applications

Receiver

- Internal Antenna Diversity
- Up to 10 selectable channels
- 8 compatible systems (multiple bands vary per country)
- 1/4 in. and XLR output

Bodypack Transmitter

- Power, mute and battery status LED
- Power and mute switch
- 9V battery (included) provides 8 hours of battery life
- 75m (250 ft.) operating range


System
Working Range: 75m (250 ft.) Note: actual range depends on RF signal absorption, reflection, and interference.

Audio Channel Response: Minimum: 45 Hz. Maximum: 15 kHz (overall system channel depends on microphone element).

Total Harmonic Distortion: 0.5%, typical Ref. +/- 33 kHz deviation, 1 kHz tone

Dynamic Range: >100 dB A-weighted, typical

Operating Temperature Range: -18 degrees C (0 degrees F) to +57 degrees C (+135 degreesF) Note: battery characteristics may limit this range

Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PG1 Bodypack Transmitter
Audio Input Level: -10 dBV maximum at "mic" gain position +10 dBV maximum at 0dB gain position +20 dBV maximum at -10dB gain position

Gain Adjustment Range: 30 dB

Input Impedance: 1M ohm

RF Transmitter Output: 10 mW typical (dependent on applicable country regulations)

Dimensions: 110 mm H x 64 mm W x 21 mm D (4.3 x 2.5 x 0.8 in.)

Weight: 75 grams (2.6 oz.) without battery

Housing: Molded ABS

Power Requirements: One 9V alkaline or rechargeable battery

Battery Life: >8 hours
